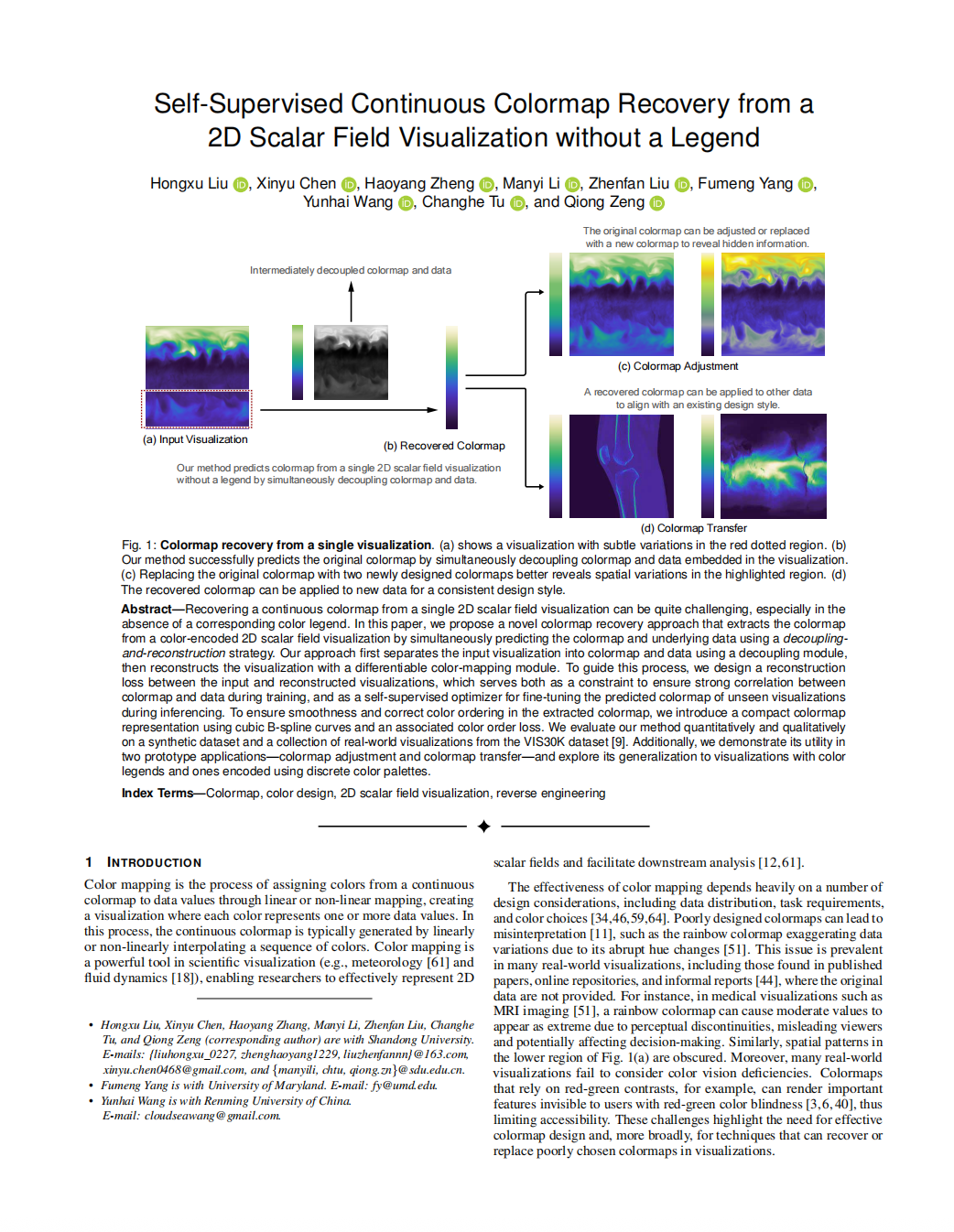

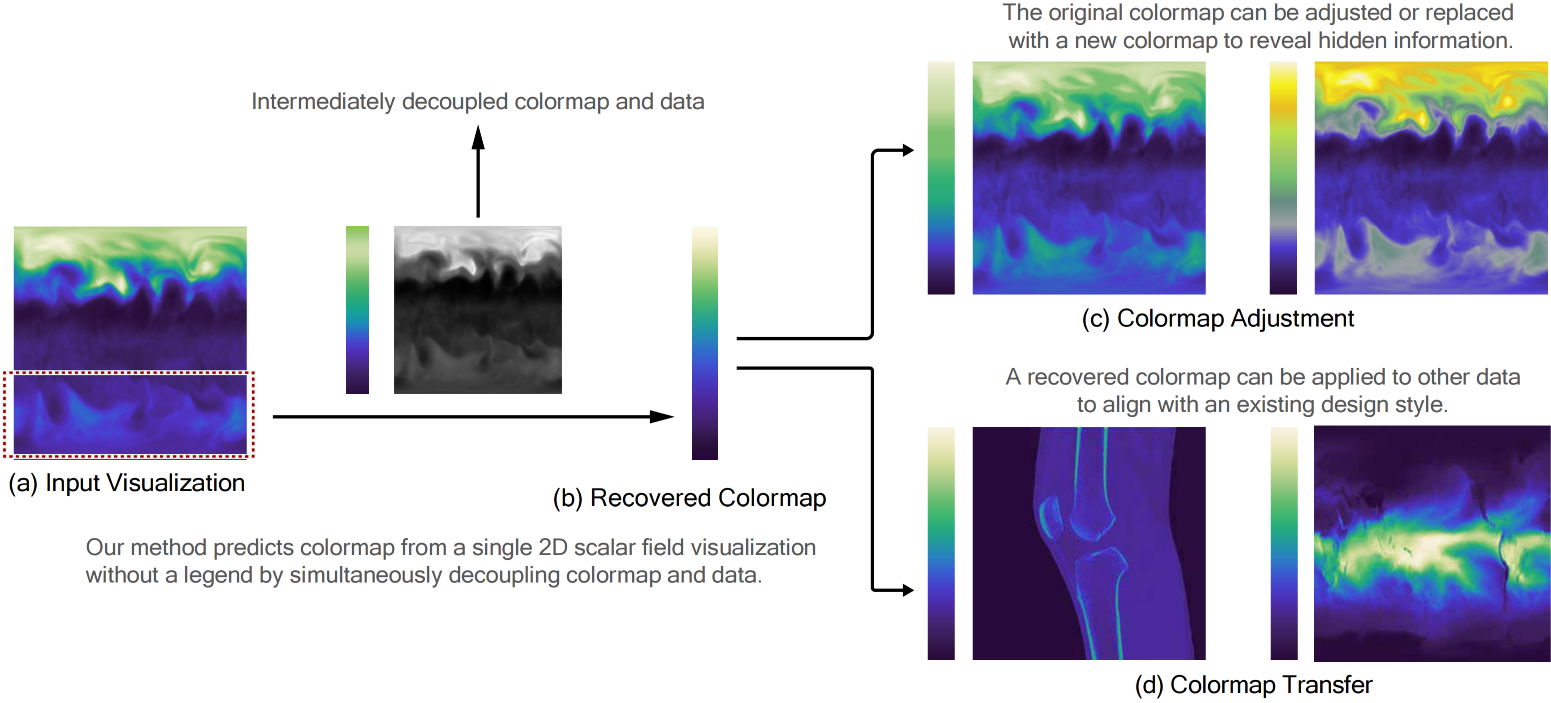

Fig. 1: Colormap recovery from a single visualization. (a) shows a visualization with subtle variations in the red dotted region. (b) Our method successfully predicts the original colormap by simultaneously decoupling colormap and data embedded in the visualization. (c) Replacing the original colormap with two newly designed colormaps better reveals spatial variations in the highlighted region. (d) The recovered colormap can be applied to new data for a consistent design style.

Abstract:

Recovering a continuous colormap from a single 2D scalar field visualization can be quite challenging, especially in the absence of a corresponding color legend. In this paper, we propose a novel colormap recovery approach that extracts the colormap from a color-encoded 2D scalar field visualization by simultaneously predicting the colormap and underlying data using a decoupling- and-reconstruction strategy. Our approach first separates the input visualization into colormap and data using a decoupling module, then reconstructs the visualization with a differentiable color-mapping module. To guide this process, we design a reconstruction loss between the input and reconstructed visualizations, which serves both as a constraint to ensure strong correlation between colormap and data during training, and as a self-supervised optimizer for fine-tuning the predicted colormap of unseen visualizations during inferencing. To ensure smoothness and correct color ordering in the extracted colormap, we introduce a compact colormap representation using cubic B-spline curves and an associated color order loss. We evaluate our method quantitatively and qualitatively on a synthetic dataset and a collection of real-world visualizations from the VIS30K dataset. Additionally, we demonstrate its utility in two prototype applications—colormap adjustment and colormap transfer—and explore its generalization to visualizations with color legends and ones encoded using discrete color palettes.
